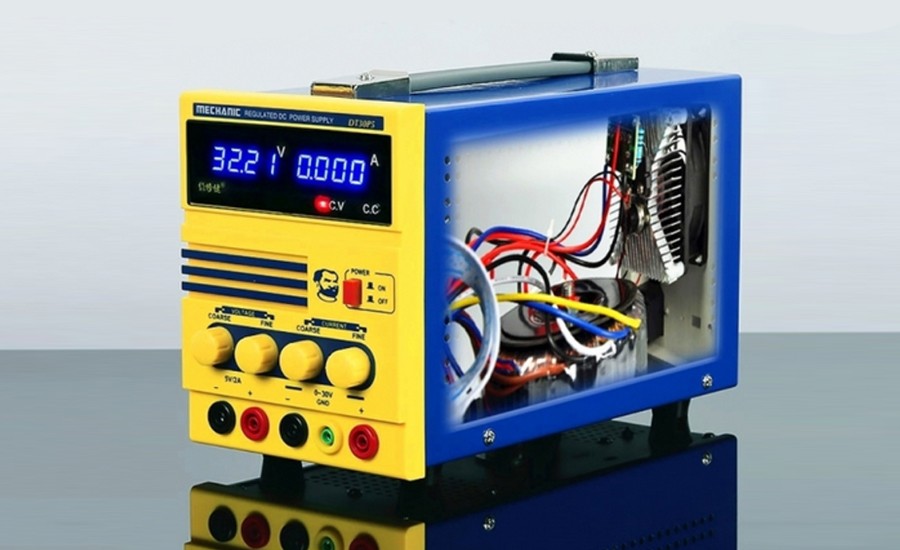

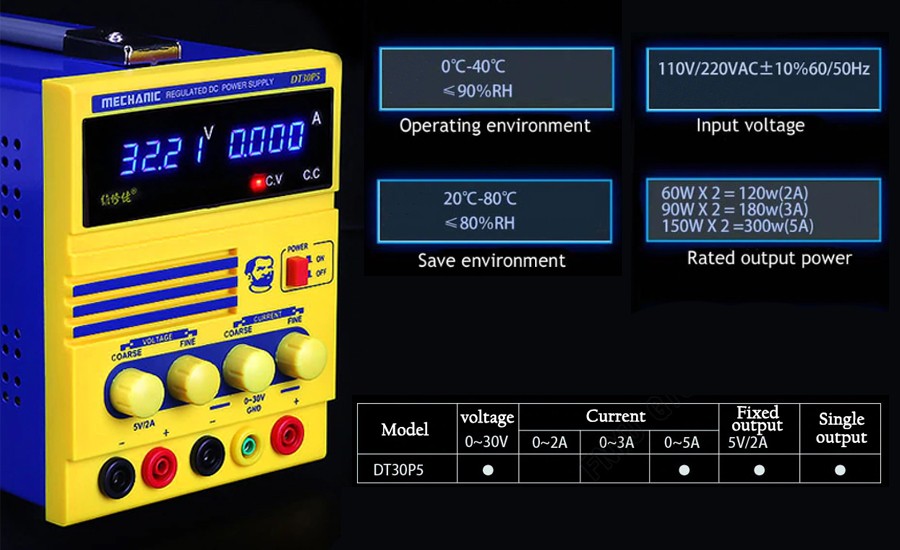

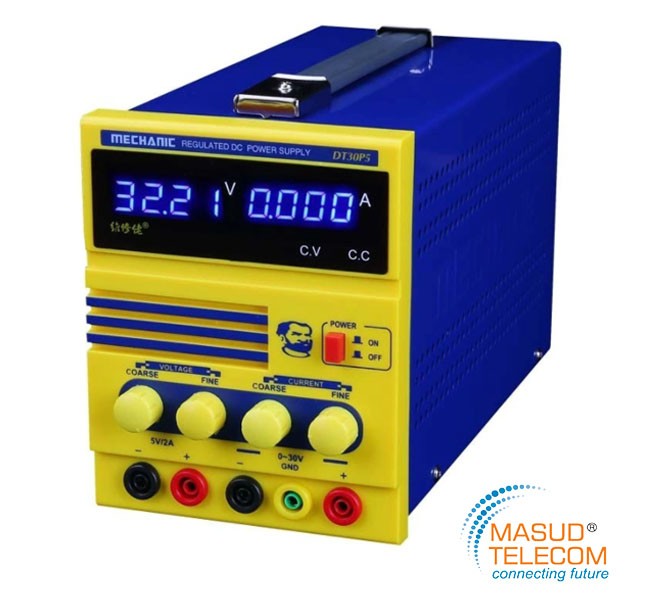

DT30P5 DC Power Supply FEATURES 1 – Compact Design2 – Dual 4 Digit LED Displays3 – Digital Controls4 – Output switch control5 – 4 sets of parameters can be stored inside for fast recall6 – Keyboard Lock to prevent accidental changing of set parameters7 – Circuit protection for over load, short circuit and over temperature. 8 – Automatic switching between mA and A display 9 – Quiet variable speed fan DESCRIPTION This is packed with features and at a cost that can’t be beat!! It has an easy to read 4 digit LED is used to display the voltage and current values and 4 programmable storage setting. This is a heavy duty single-channel, constant-voltage and constant-current Linear power supply with low ripple and noise, high reliability and high accuracy. The voltage and current are continuously adjustable. It is designed for use in labs, colleges and in production. This unit is priced about the same as lower cost 3 digit power supplies without programmable storage!!! Operating Conditions: Input voltage:110V /-10% switchable to 220V /-10% Frequency range: 50- 60Hz Operating temperature: 32-104 F (0-40 ºC) Operating humidity: < 80%RH Storage temperature: 32-158 F (0-70 ºC) Storage humidity: < 70%RH Stable Voltage: Output Voltage Range: 0-30V Continuously adjustable Setup Resolution: 10 mV Setup Accuracy: <0.05% 20 mV Ripple: < 1mVRMS Read back Accuracy: 10 mV Temp. Coefficient: < 100 ppm 5 mV Read back Temp. Coefficient: < 100 ppm 5 mV Stable Current: Output Current Range: 0-5A Continuously adjustable Setup Resolution: 1 mA Setup Accuracy: <0.1% 3 mA Ripple: < 3mARMS Read back Accuracy: 1 mA Temp. Coefficient: < 100 ppm 5 mA Read back Temp. Coefficient: < 100 ppm 5 mA Features & Specifications DT30P5 DC Power Supply 1. A good wetting, good weldability 2. Little impurity, diffusion ability well 3. Eco-friendly products, do not pollute the environment. 4. Smoke is small, less splash 5. Use for the printed circuit board 6. Increase the speed of production 7. Reduce production costs Application: Soldering in PCB, radio or normal home appliances Repair of normal home appliances and audio installations Soldering radio transponder, instrument and calculator and so on more about This Product More
