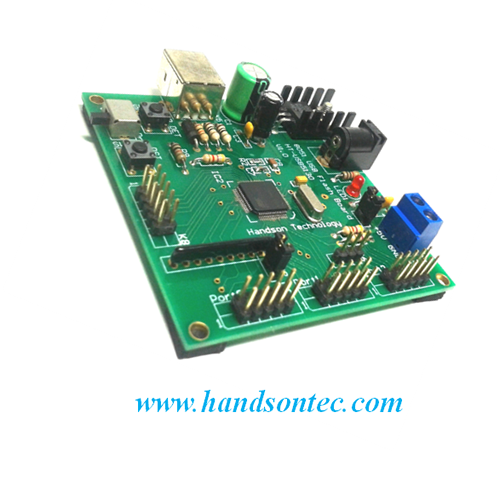

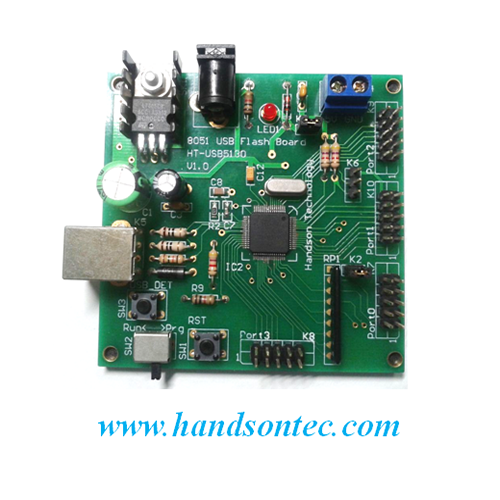

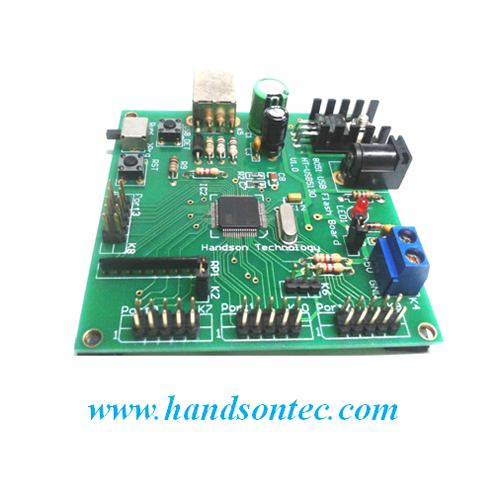

Description 8051 USB Flash Memory Development Board Flash micro-controllers are easy to program, which makes them suitable for rapid software development environments and educational uses. In the past, program code was usually downloaded via a serial interface, but nowadays many PCs (especially laptops) only have USB ports. This versatile Flash Board provides a solution to this problem. It is built around an AT89C5131A, which is an extended 8051-family micro-controller with an 80C52 core and a Full Speed USB port. As a sort of bonus, the IC has a complete update interface for downloading new firmware. Technical Specification: 80C52X2 Core (6 Clocks per Instruction) USB 1.1 and 2.0 Full Speed Compliant Module 32-Kbyte On-chip Flash EEPROM In-System Programming through USB port 3-KbyteFlash EEPROM for Bootloader, 1-Kbyte EEPROM Data Flash memory reliably stores program code even after 100,000 erase and program cycles with 10-year minimum data retention Keyboard Interrupt Interface on Port P1 (8 Bits) 34 general purpose I/O pins connected to 10pins header connectors for easy I/O pins access 4 Direct-drive LED Outputs with Programmable Current Sources: 2-6-10 mA Typical Industrial popular window Keil C compiler and assembler included (Eval. version) Free Flip Windows software for easy program code down loading Software bundle in CD-ROM, including tutorials, compiler/assembler, programming utilities, applications notes, 8051 based projects and examples programs Related Link: HT-USB5130 Getting Started Manual Block Diagram FLIP Programmer for HT-USB5130 8051 Tutorial Keil C Compiler Version 7.50A Application Examples: Push-Button Up/Down Counter V1 Push-Button Up/Down Counter V2 I2C Bus for P89V664 & PCA9553 Blinky 8051 Learning Resources 8051 Embedded Programming in C- Book-I 8051 Embedded Programming in C- Book-II 8051 Final Word Systems Design and 8051 8051 base micro-controller projects Our Local Outlet: lelong.com.my Others Resources: Alarm Clock with HT-USB5130 Development Board. Please fill in your email address to download this project Article. [email-download download_id=”250″ contact_form_id=”248″]
