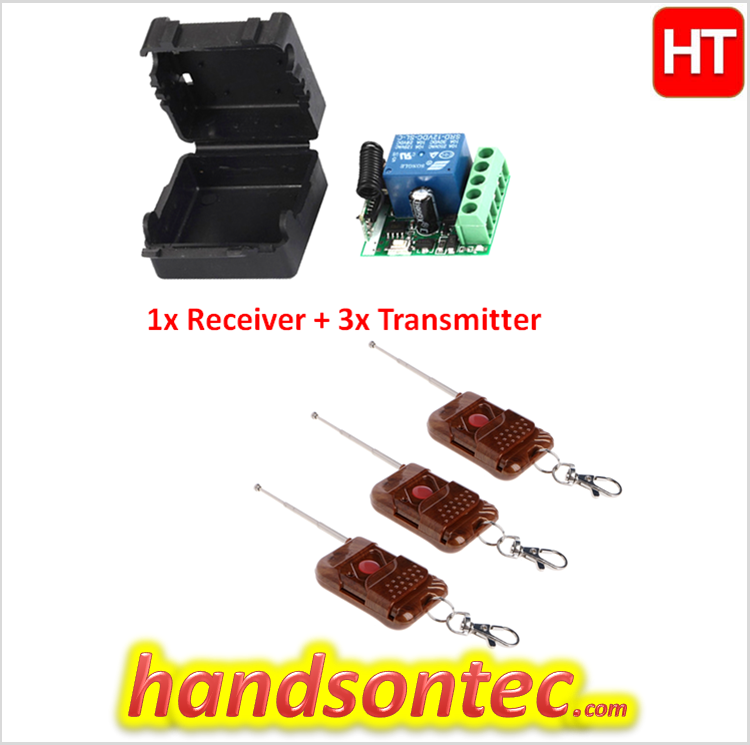

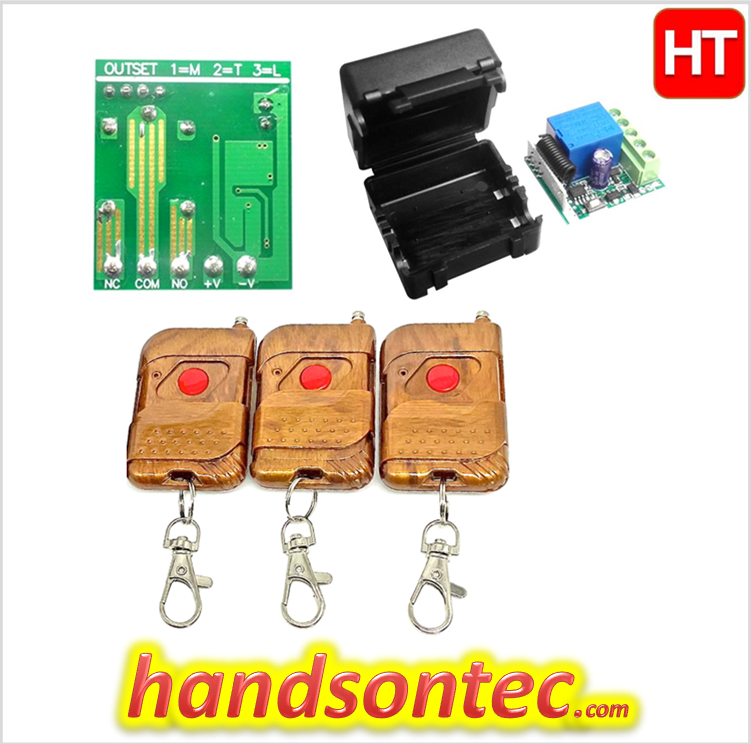

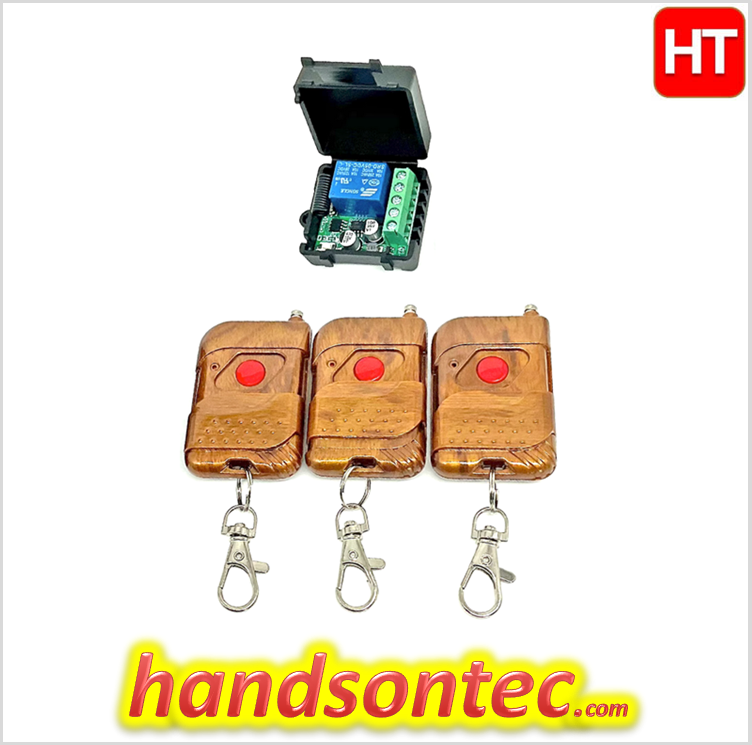

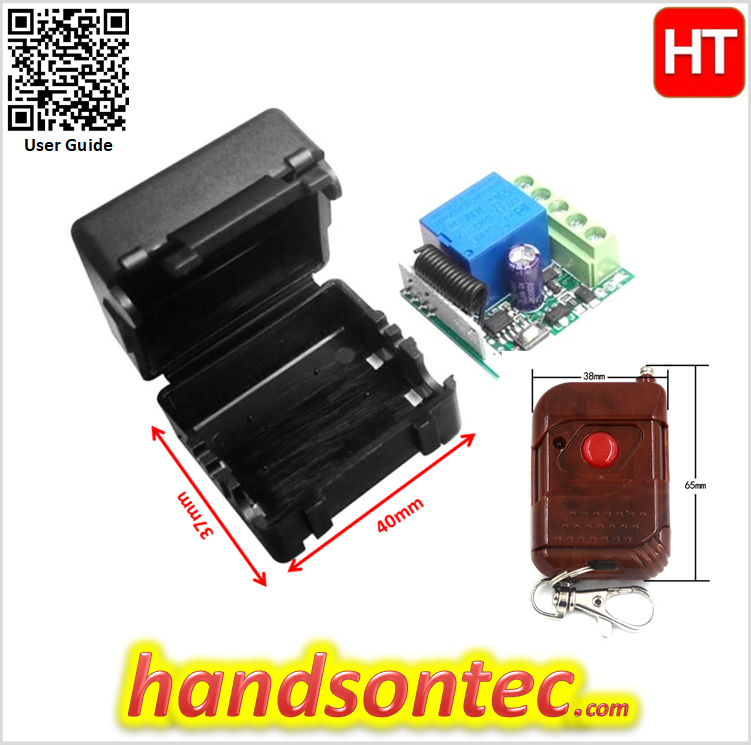

Description This is secure general purpose remote control system, which can be used for controlling many different applications. Easy to install, the receiver is connected using standard on-board screw terminals. Relay output can switch up to 10A at 230Vac. The receiver relay outputs operate when the transmitter switch is pressed. The outputs can be set to momentary, toggle, latching or time-delay operation. The system is supplied ready to ‘plug n play’, in addition a further 20 transmitter can be ‘learnt’ by the receiver. Brief Data: A: Receiver Specifications: Operating Voltage: (10~14)Vdc. Standby Current: <5mA. Center Frequency: 315MHz ISM Band. RF Mode: Super-Heterodyne. Receiver Sensitivity: >115dbm. Modulation Mode: ASK. Receiving distance: (20~100)-Meter open space. Decoding mode: MCU software decoding. Switching Mode: Momentary, Toggle, Latching & Time Delay, user programmable. Receiver Learning: 20 Transmitters. Wiring Type: Screw on Terminal. Relay Output Configuration: SPDT (Single-Pole-Double-Throw). Dimension: Casing: (40x37x26)mm. Inner PCB: (35x30x18)mm. B: Transmitter Specifications: Operating Voltage: (10~14)Vdc. Encoder Ship: EV1527 & PT2264. Standby Current: <5mA. Center Frequency: 315MHz ISM Band. RF Mode: Super-Heterodyne. Transmitting distance: (20~100)-Meter open space. Dimension: (64x40x15) mm. Package Content: 1x Receiver Module with Casing 3x Keyring Transmitter. Related Information: 315MHz Remote Control Kit User Guide Our Local Outlet: Shopee Lazada
