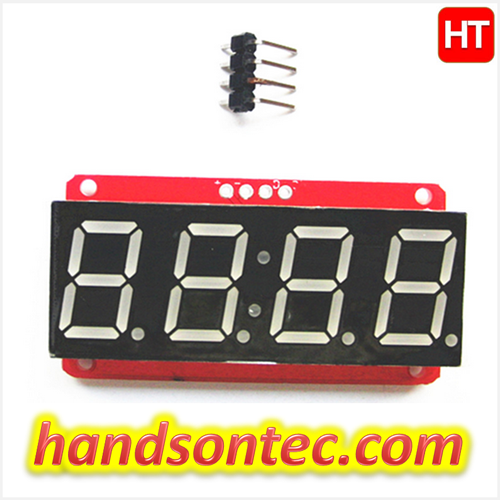

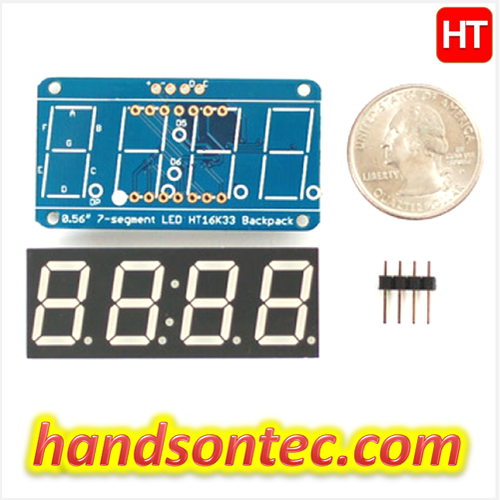

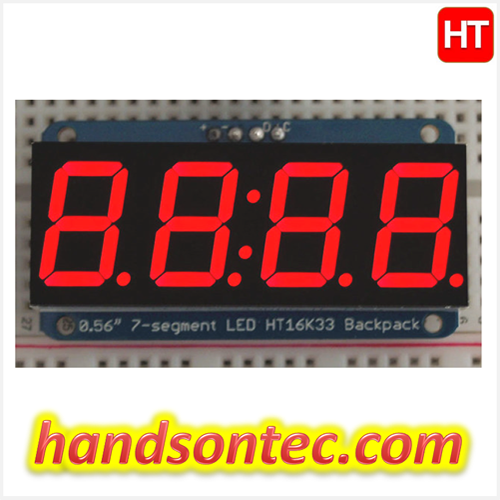

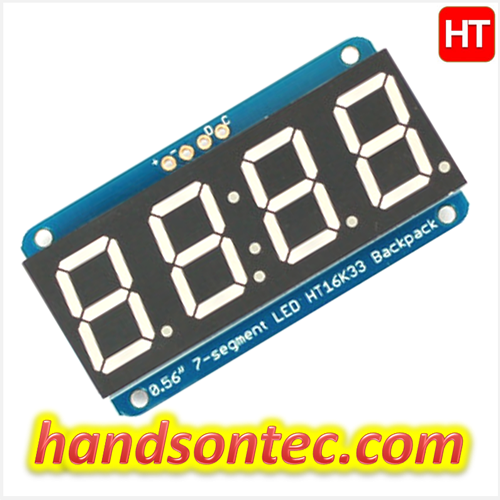

Description This version of the LED backpack is designed for these big bright 7-segment displays. These 7-segment displays normally require 13 pins (5 ‘characters’ and 8 total segments each) This backpack solves the annoyance of using 13 pins or a bunch of chips by having an I2C constant-current matrix controller sit neatly on the back of the PCB. The controller chip takes care of everything, drawing all the LEDs in the background. All you have to do is write data to it using the 2-pin I2C interface. There are three address select pins so you can select one of 8 addresses to control up to 8 of these on a single 2-pin I2C bus (as well as whatever other I2C chips or sensors you like). The driver chip can ‘dim’ the entire display from 1/16 brightness up to full brightness in 1/16th steps. It cannot dim individual LEDs, only the entire display at once. Pack of 1-piece/lot. Brief Data: Display Type: 4-Digit 7-Segments with Dot and Column. Interface: Two wires I2C Bus. Backpack Dimensions: (27x50x4) mm. 7-Segment Display Dimensions: (19x50x14) mm Backpack Weight: 5.3g 7-Segment Display Weight: 8.4g Related Information: 4-Digit Display Module User Guide I2C Bus Specification & Devices Our Local Outlet: lelong.com.my
