2 Channel Solid State Relay (SSR) Module – AC Load

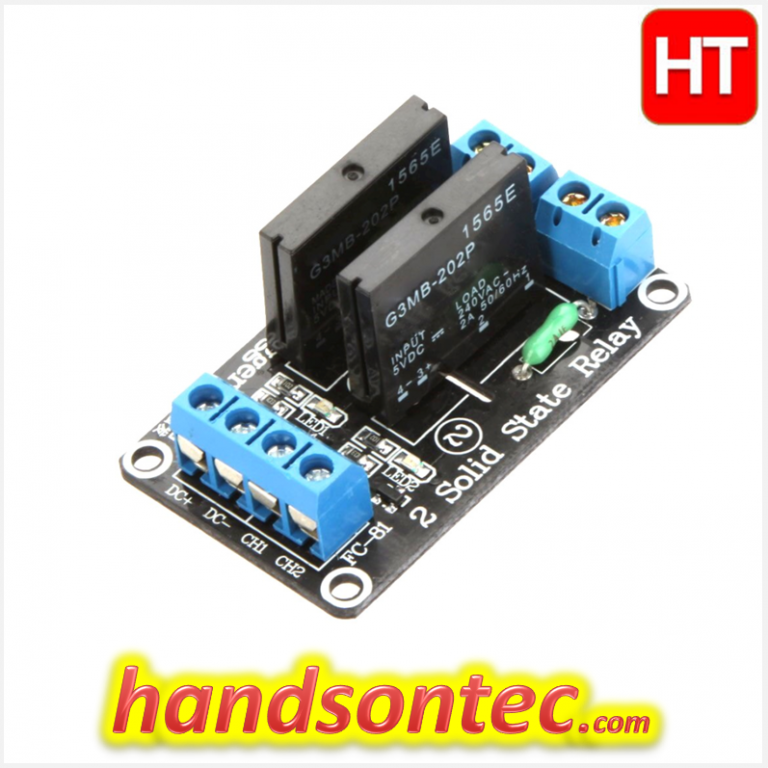

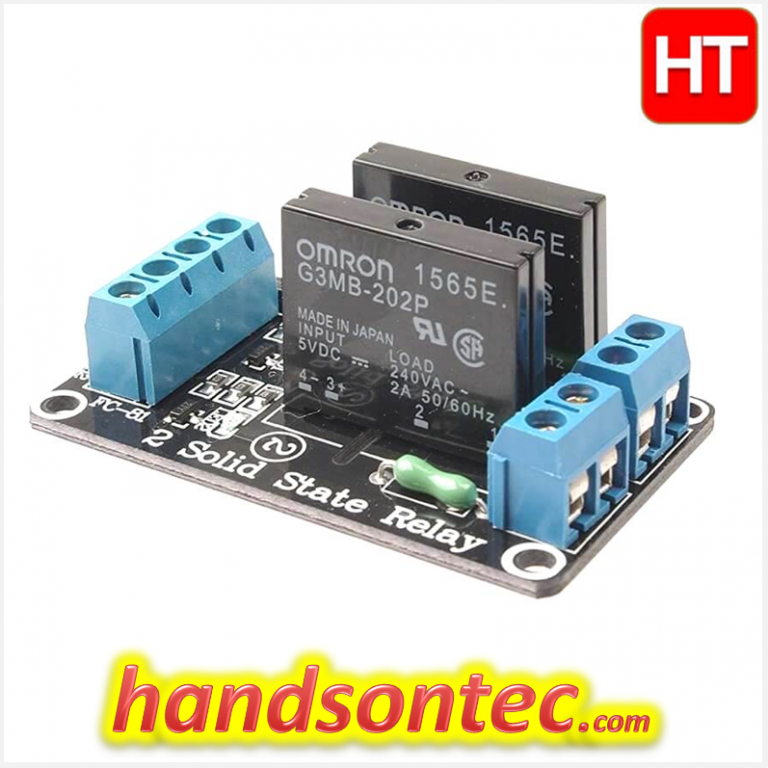

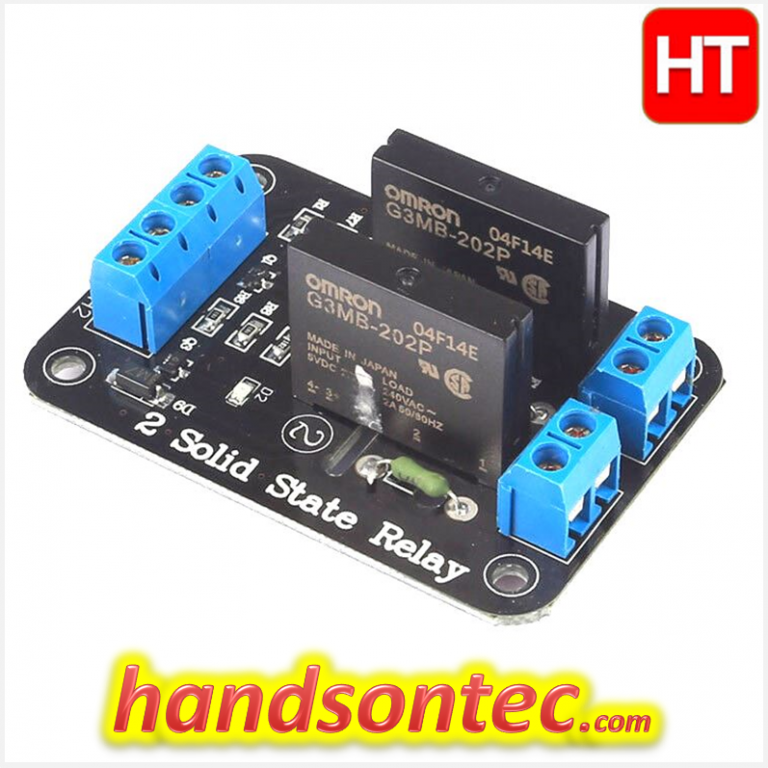

Description This is Solid-State Relay (SSR) Module based on Omron G3MB-202P subminiature SSR. This is Arduino compatible. Solid-State Relay is similar to that of a mechanical relay & the difference is that, there is no moving contact in a Solid-State Relay. SSR make use of Phototriac coupler to turn it ON and OFF. It finds its application in AC circuits as a TRIAC has got only limited applications in DC. And with that, this relay is suitable to control AC load, not for DC load. Brief Data: Product: Solid-State Relay. Number of Channel: 2. Rated output load: 100~240VAC (50Hz/ 60Hz) 2A per channel. Rated input power: 5V@10mA per Channel. Triggered Level: Low (Active Low). Separate LEDs showing status of each Solid-State Relay. Input control signal: Low Signal (Solid-State Relay ON / CLOSE), 0V- 2V or GND. High Signal (Solid-State Relay OFF / OPEN), 3.3V – 5.0V or leave it floating. Module Mounting Hole: M3 Screw. Related Information: SSR Module User Guide Our Local Outlet: Shopee Lazada
