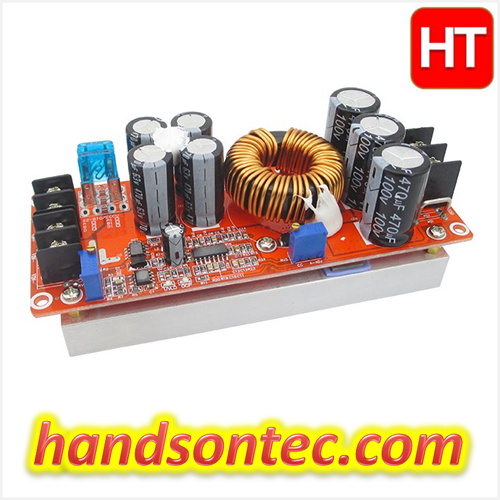

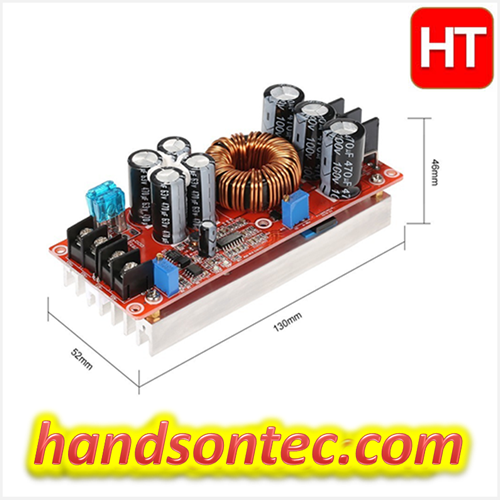

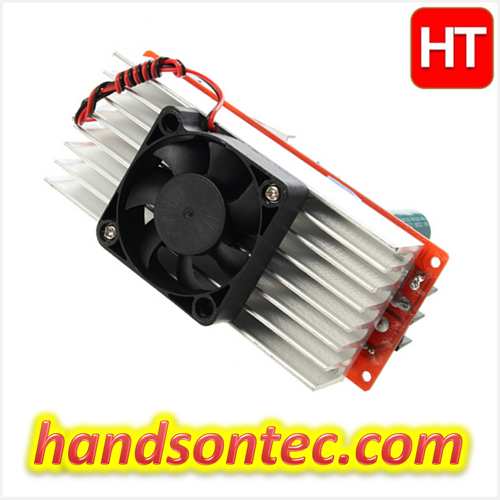

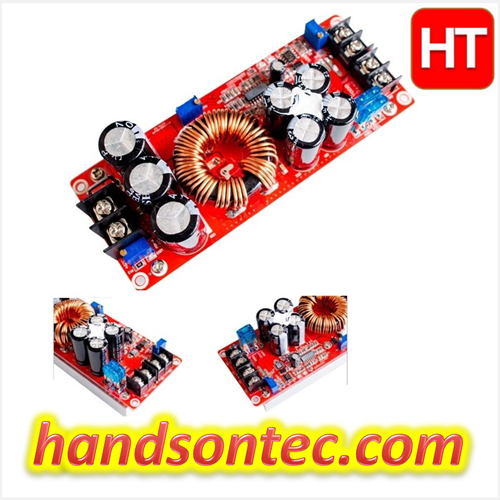

Description 1200W High Power DC-DC Converter Boost Step-up Power Supply Module 20A. 20A 1200W DC-DC Step Up Converter Module with Constant Current (CC) and Constant Voltage (CV) control. Brief Data: Input voltage: 10-60Vdc. Input Current: 20A. Output voltage: 12-80Vdc continuously adjustable. Output Current: 20A MAX. If over 10A, please add ventilation fan for heat dissipation. Constant Current Range: 0.5-20A. Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet). Switching frequency: 150KHz. Conversion efficiency: 92%~ 97%. Over current protection. Input reverse voltage circuit protection with 150A MOSFET. If the constant current mode is used to set the voltage, the constant voltage must be higher than the input voltage. Do not use the method of short circuit output to adjust the output current, the module design of the boost converter cannot be adjusted in short circuit method. Module dimensions: 116x52x15mm (L x W x H). Weight: 260 grams. Fan to be purchased separately. Recommended fan: GDT5010S12B. Related Information: 1200W Boost Converter User Guide Our Local Outlet: Shopee Lazada
