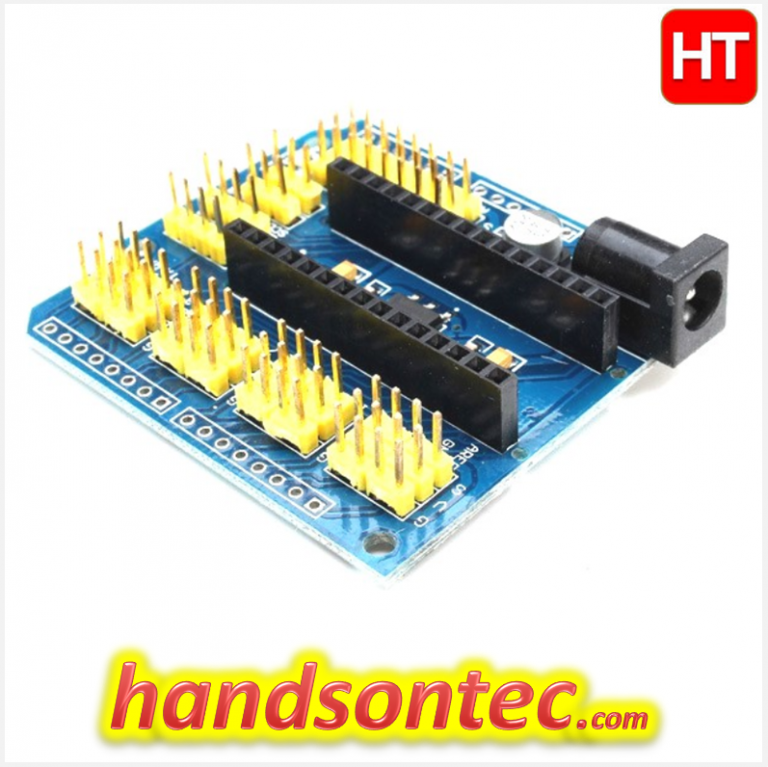

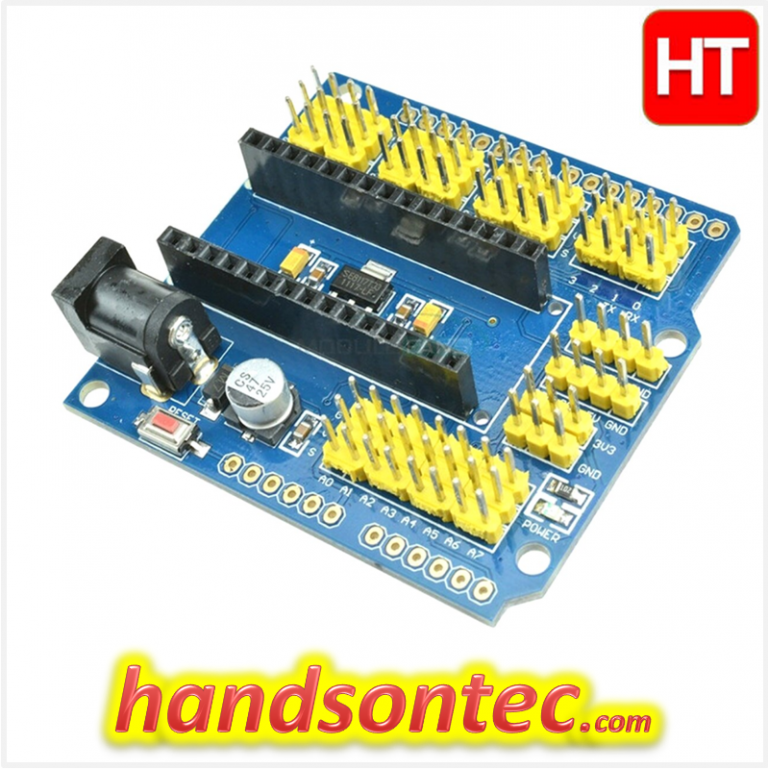

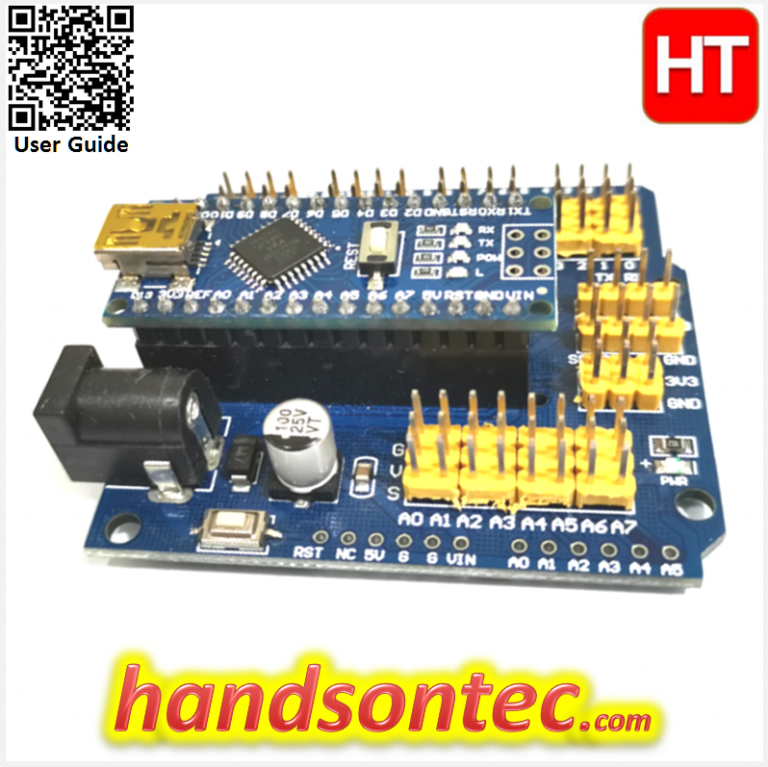

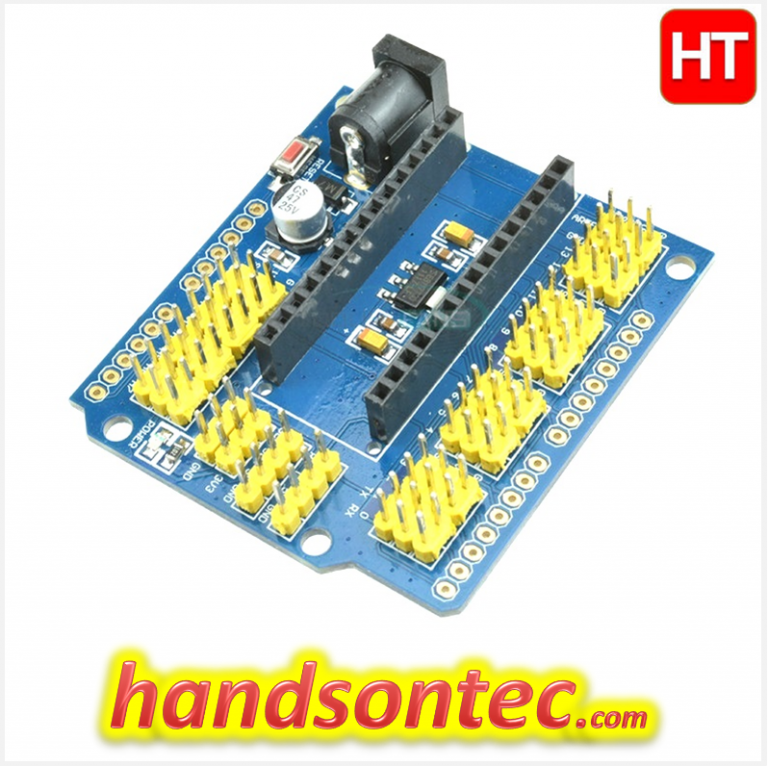

Description This is an I/O pin extension shield for Arduino Nano making connection easier. All I/O pins are accessible with male header pin. Brief Data: Pin out for 14 digital input/output pins. Pin out for 6 PWM outputs. Pin out for 8 analog inputs. Pin out for I2C Interface. Power jack. Reset button. LED for power indicator. AMS1117 3.3V Output Voltage. Also compatible with Arduino UNO after soldering pin headers to this shield. Board Dimension: 53x58mm. Arduino Nano Board not included, to be purchased separately. Documents: Arduino Nano 3.0 Specs Schematic Eagle Files Product Page Arduino IDE Download Related Information: Learn-Arduino Tutorial Series Arduino Official Website Our Local Outlet: Shopee lelong.com.my
