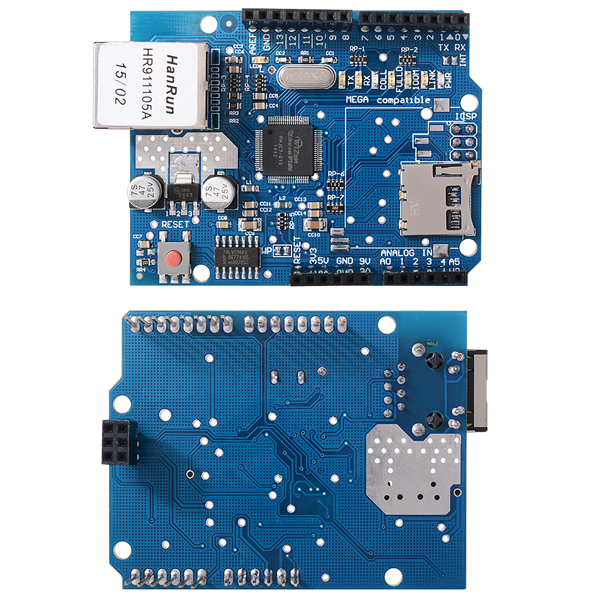

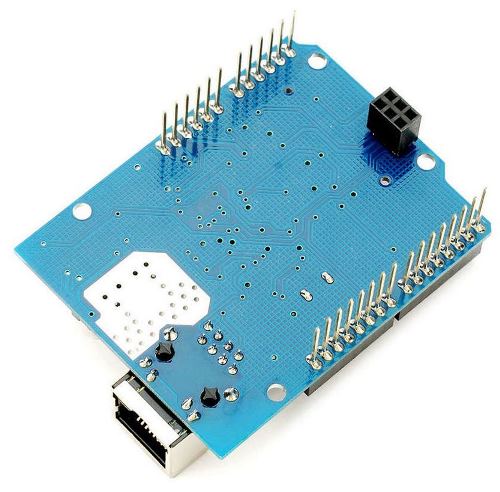

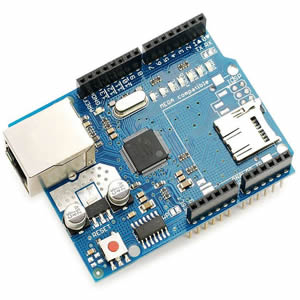

Description The Arduino Ethernet Shield R3 (assembled) allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield. The new Ethernet shield now includes a micro SD card connector, it is MEGA compatible and an on-board reset controller. The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top. Arduino uses digital pins 10, 11, 12, and 13 (SPI) to communicate with the W5100 on the ethernet shield. These pins cannot be used for general I/O. The shield provides a standard RJ45 ethernet jack. An Arduino main board is necessary to use this shield but is not included. The shield contains a number of informational LEDs: PWR: indicates that the board and shield are powered LINK: indicates the presence of a network link and flashes when the shield transmits or receives data FULLD: indicates that the network connection is full duplex 100M: indicates the presence of a 100 Mb/s network connection (as opposed to 10 Mb/s) RX: flashes when the shield receives data TX: flashes when the shield sends data COLL: flashes when network collisions are detected The solder jumper marked “INT” can be connected to allow the Arduino board to receive interrupt-driven notification of events from the W5100, but this is not supported by the Ethernet library. The jumper connects the INT pin of the W5100 to digital pin 2 of the Arduino. Brief Data: Dimensions: 73mm x 54mm x 17mm (2.8in x 2.1in x 0.7in). Weight: 26g /1oz. Our Local Outlet: Lelong.com.my
