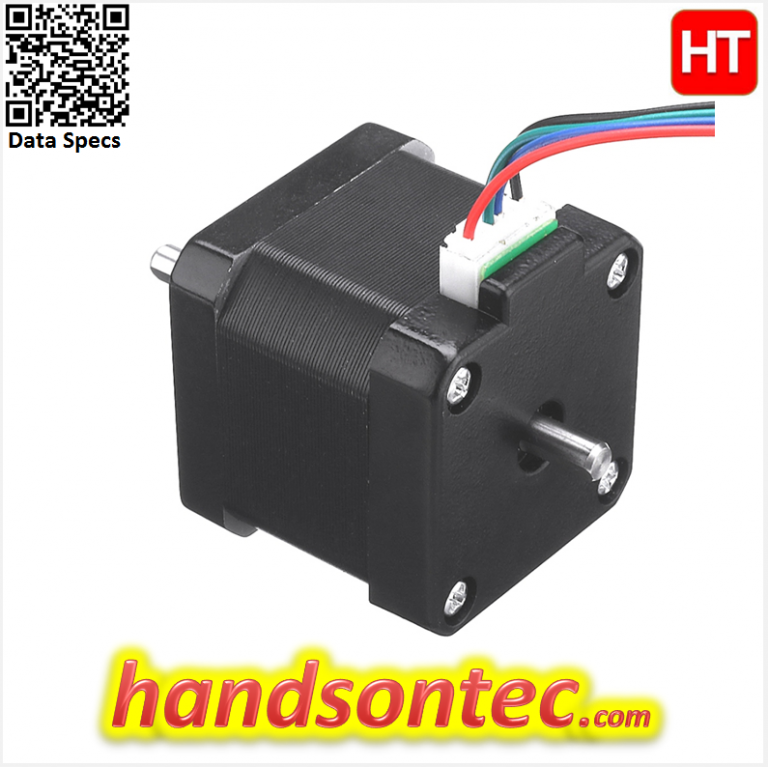

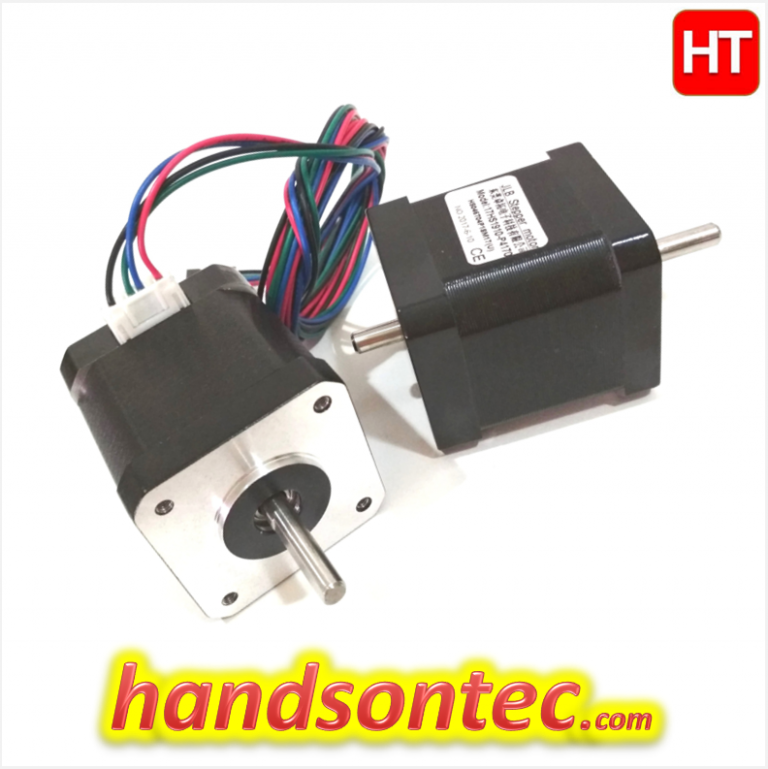

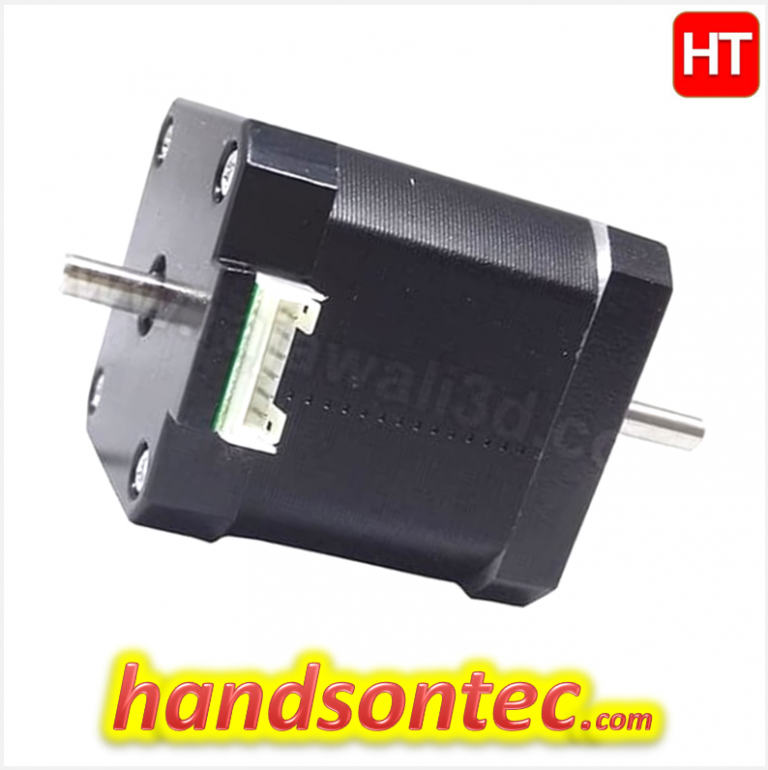

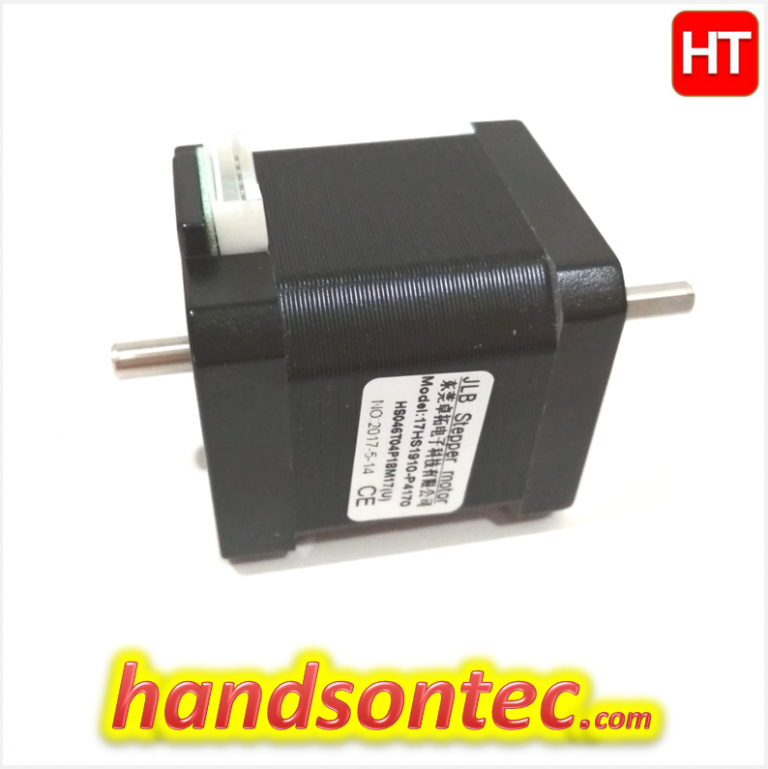

1.7A 55Ncm Nema 17 Dual Shaft Stepper Motor (Free Cable)
$80.55
$124.05
Description A stepper motor to satisfy all your 3D-Printer, robotics, Linear Motion projects needs! This 4-wire bipolar stepper has 1.8° per step for smooth motion and a nice holding torque. Ths Dual Shaft motor was specified to have a max current of 1.7A/phase so that it could be driven easily with common motor shield for Arduino (or other motor driver) and a wall adapter or lead-acid battery. The motors are supplied with a 30cm long power cable with a 4-pin Harwin female connector. General Specification: Nema17 Bipolar.Number of Phase: 2. Step Angle: 1.8°. Phase Current: 1.7A. Resistance: 1.8Ω ±10%. Inductance: 3.2mH ±20% (1KHz). Number of Wire: 4 (100cm Length). Motor Body Length: 48mm. Holding Torque: 55N.cm. Shaft Diameter: Ø5mm Dual Shaft. Mass: 380g. Related Information: 17HS1910 Specification. Our Local Outlet: lelong.com.my
