40A Reversible Motor Speed Controller With PWM Display
$77.18
$131.21

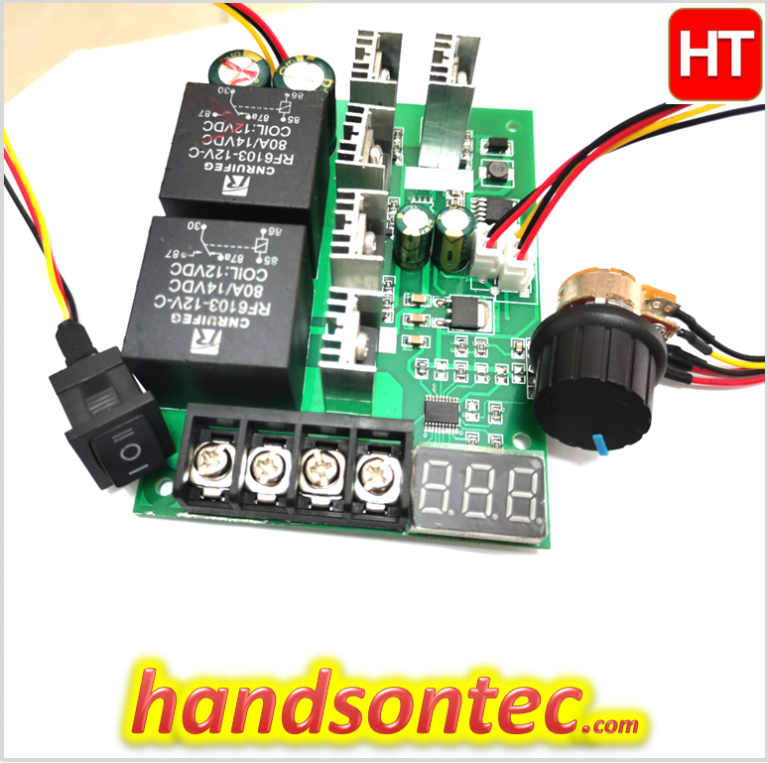

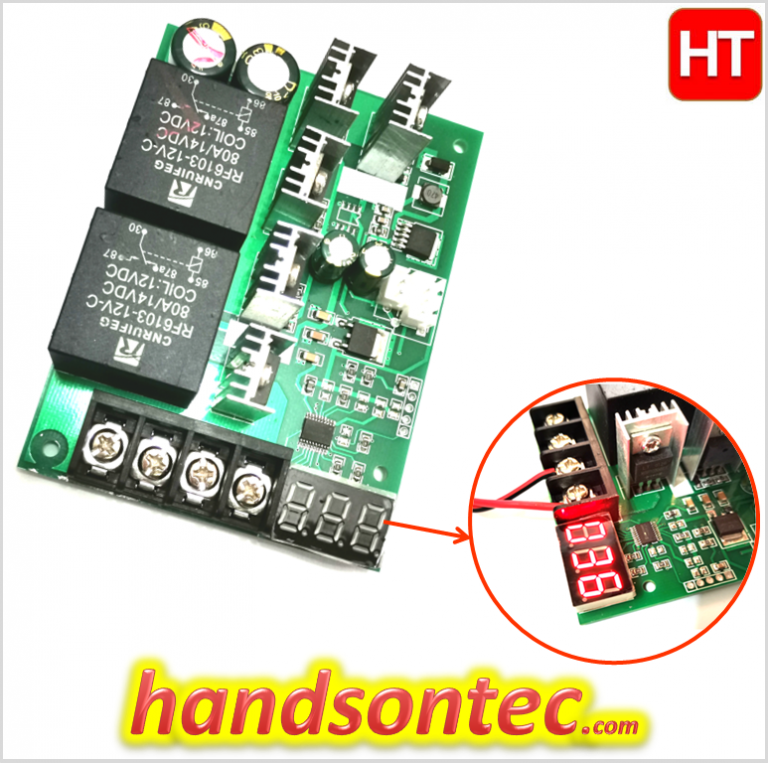

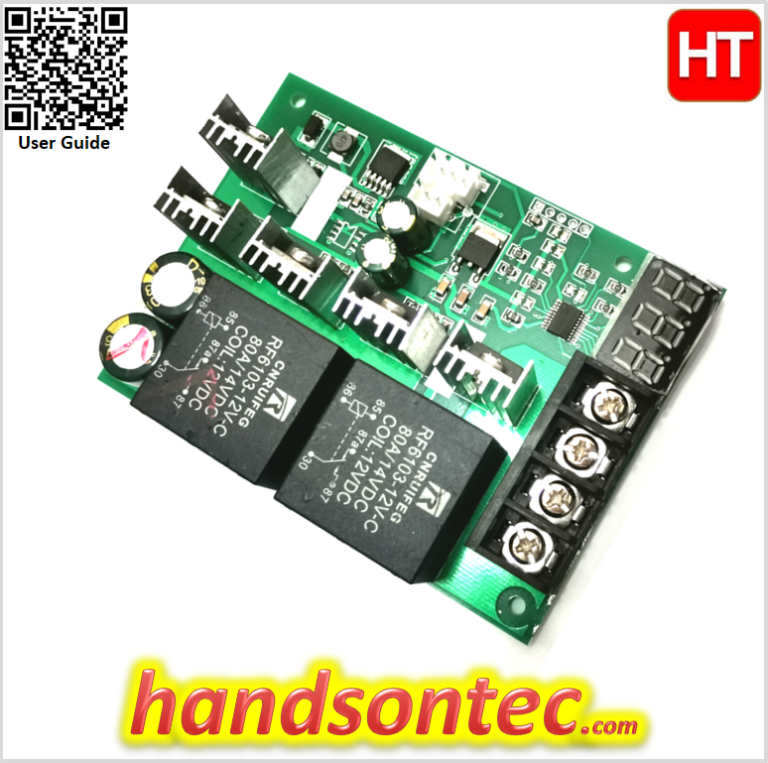

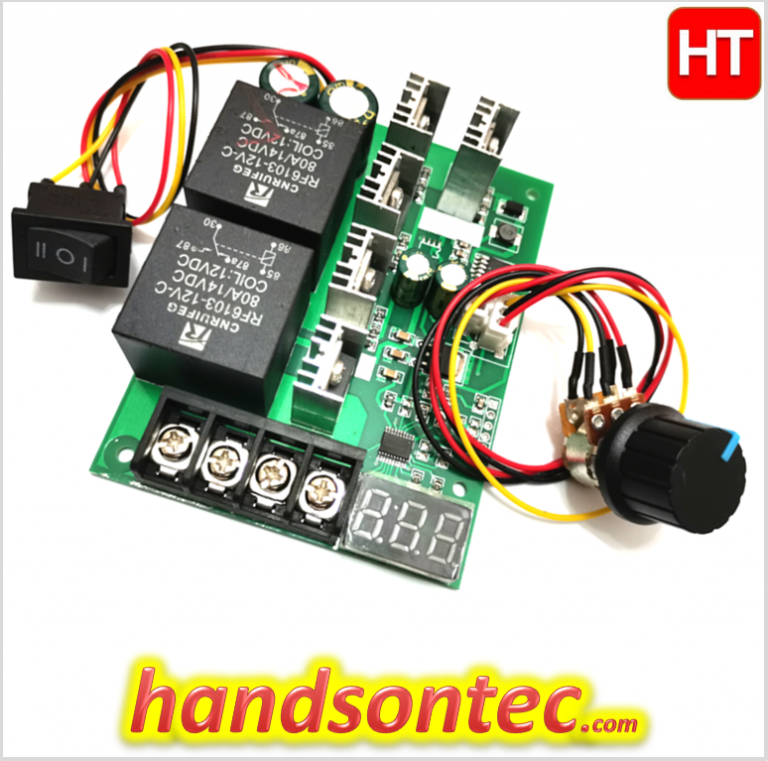

Description This PWM (Pulse-Width-Modulation) DC Motor Speed Controller allows controlling the speed and direction of a DC motor. This motor speed controller use efficient high power MOSFET with a heat sink and can easily provide a continuous operating current of 40A to DC brush motor, LED dimming control or other DC load. With 3-digit 7-segment PWM value display for easy adjustment. Brief Data: Input Voltage: 10V~50V. Maximum current: 40A. Display: 3-Digit 7-Segment. Duty Cycle Range: 0% ~ 100%. PWM Frequency: 15KHz. Control mode: Potentiometer (switch). Direction Control: Rocker Switch, Forward-Stop-Backward. Reverse: Yes, with switch Board size (LxWxH): (100x76x28) mm. Net weight: 160g. Related Information: 40A PWM Display Motor Speed Controller Module Guide You May Also Like… Nema 23 Bipolar/Unipolar Stepper Motor 1.0A 6-Lead CNC 3-Axis Stepper Motor Shield Bundle for Arduin L293D Motor Driver Shield for Arduino 2A Nema 17 Stepper Motor Our Local Outlet: Shopee Lazada
