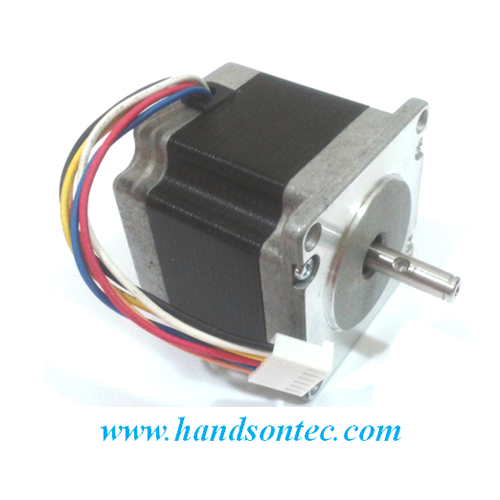

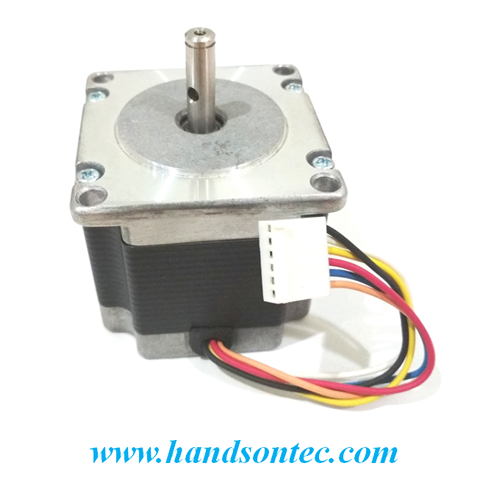

Description A stepper motor to satisfy all your 3D-Printer, robotics, Linear Motion projects needs! This 6-wire uni-polar/bipolar stepper motor has 1.8° per step for smooth motion and a nice holding torque. This motor specified to have a max current of 1.0A/phase so that it could be driven easily with common motor shield for Arduino (or other motor driver) and a wall adapter or lead-acid battery. The motors are supplied with a 10cm long power cable with a 6-pin female 2.56mm pitch header connector. General Specification: Nema23 Bipolar/Unipolar. Number of Phase: 2. Step Angle: 1.8° Phase Current: 1.0A. Resistance: 6.5Ω ±10%.’ Number of Wire: 6 (10cm Length). Motor Body Length: 53mm. Holding Torque: 100N.cm (142oz.in). Shaft Diameter: Ø6.35mm Cross Drilled. Weight: 660g. Related Information 23HS2610 Specification. Our Local Outlet… lelong.com.my logon.my
