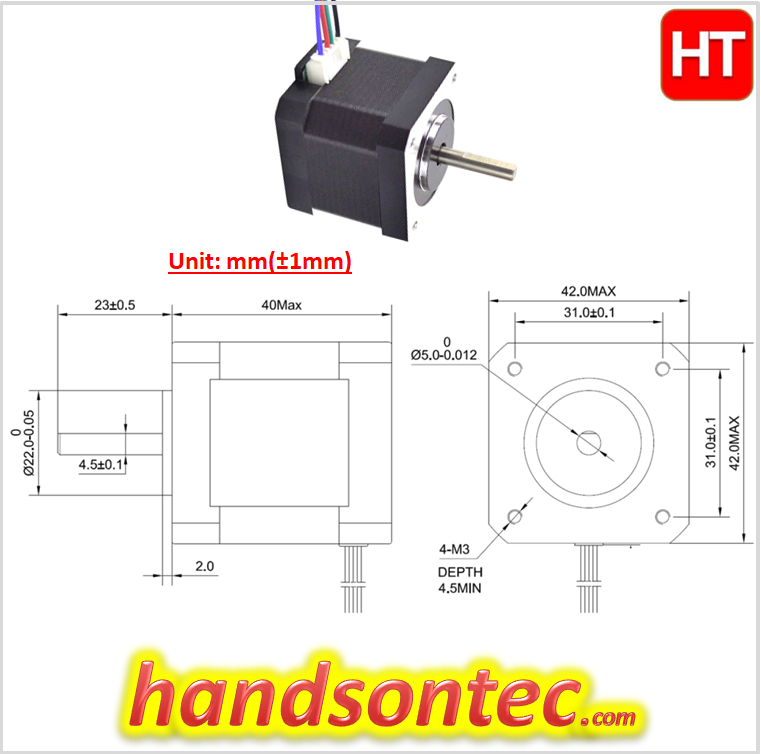

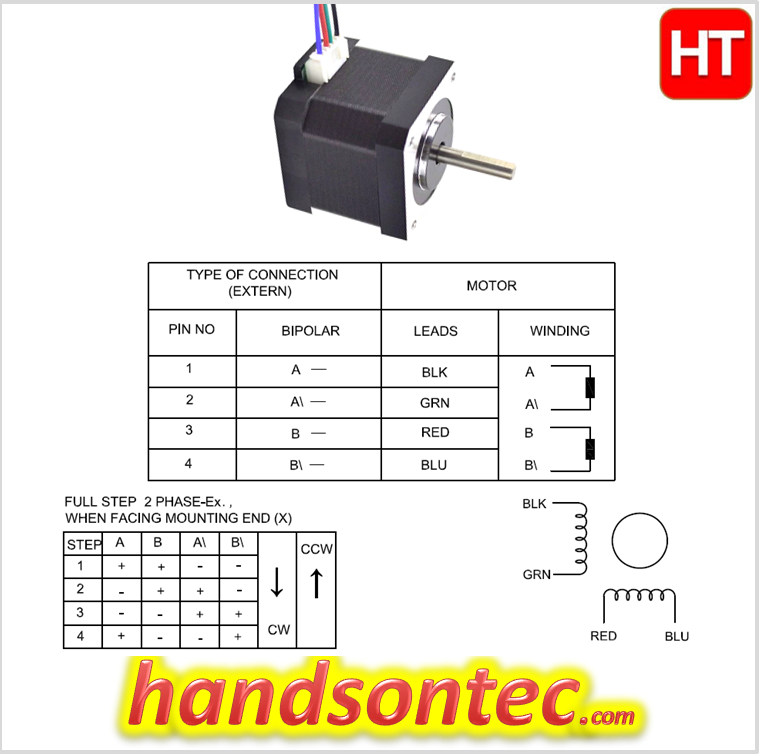

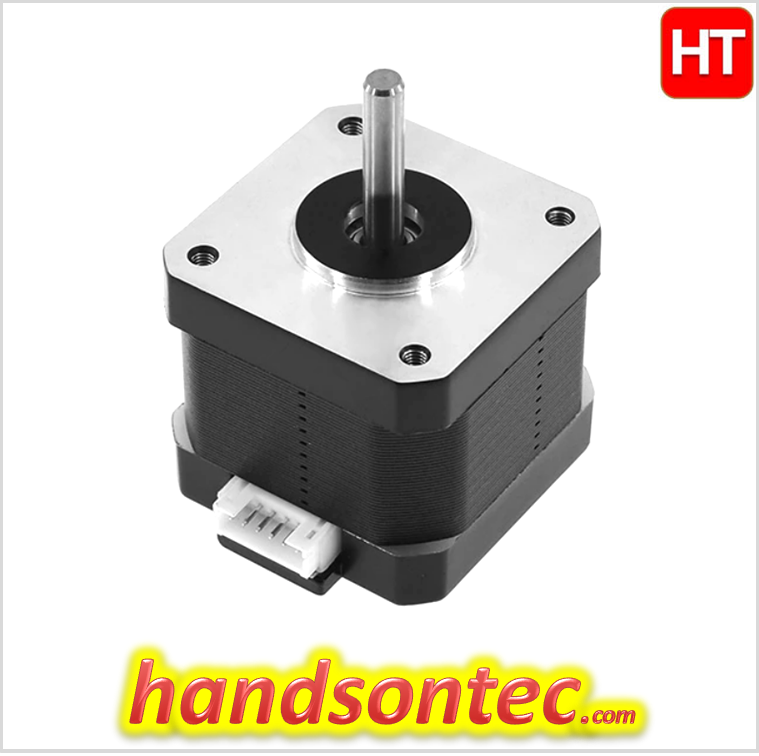

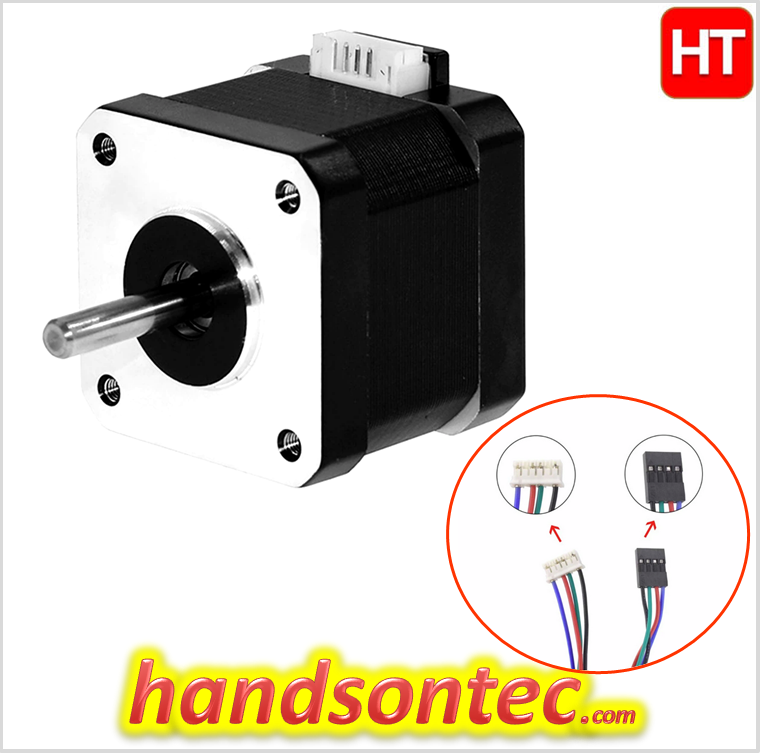

Description A stepper motor to satisfy all your 3D-Printer, robotics, Linear Motion projects needs! This 4-wire bipolar stepper has 1.8° per step for smooth motion and a nice holding torque. The motor was specified to have a max current of 1.7A/phase so that it could be driven easily with common motor shield for Arduino (or other motor driver) and a wall adapter or lead-acid battery. The motors are supplied with a 50cm long power cable with a 4-pin-to-6pin connector. Brief Data: Nema17 Bipolar Stepper Motor. Number of Phase: 2. Step Angle: 1.8°. Phase Voltage: 2.6Vdc. Phase Current: 1.5A. Resistance: 1.5Ω ±10%. Inductance: 2.8mH ±20% (1KHz). Number of Wire: 4 (100cm Length). Holding Torque: 43N.cm. Shaft Diameter: Ø5mm (D-Cut). Motor Body Length: 40mm. Mass: 290g. Related Information: 17HS4401S Specification Our Local Outlet: Shopee Lazada
